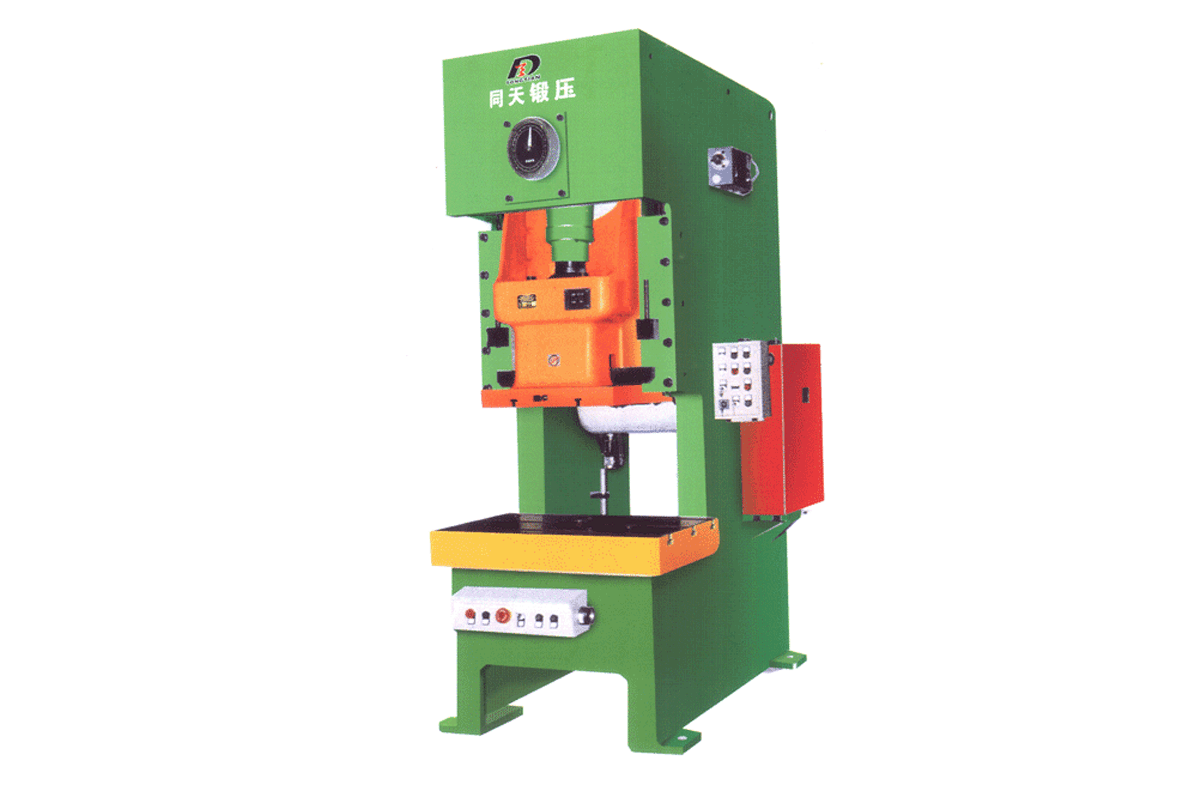

濕式壓力機,液壓保險壓力機
產品簡介JH21濕式氣動摩擦離合器、液壓保險的壓力機機采用鋼板焊接機身,剛性好，精度穩定；曲軸縱放，結構緊湊，外形美觀；采用濕式組合式氣動摩擦離合器，結合平穩，動作靈敏，噪音低。 技術參數| 序號Number | 技術參數Specifications | 單位Unit | 型號model | | JH21-63 | JH21-80 | JH21-110 | JH21-160 | JH21-200 | JH21-250 | JH21-315 | JH21-400 | | 1 | 公稱力Rated pressure | KN | 630 | 800 | 1100 | 1600 | 2000 | 2500 | 3150 | 4000 | | 2 | 滑塊行程Slide travel | mm | 120 | 140 | 160 | 200 | 250 | 250 | 250 | 250 | | 3 | 行程次數Travel times | min-1 | 70 | 60 | 50 | 30 | 30 | 30 | 30 | 30 | | 4 | Zui大裝模高度Max．die set height | mm | 300 | 320 | 350 | 380 | 450 | 500 | 500 | 500 | | 5 | 裝模高度調節量Die set height adjustment | mm | 80 | 80 | 90 | 100 | 110 | 120 | 120 | 120 | | 6 | 滑塊中心至機身距離Distance from
slide block centre to the frame | mm | 300 | 290 | 350 | 390 | 430 | 450 | 450 | 450 | | 7 | 工作臺尺寸
WorktabIe dimensions | 前后F-B | mm | 580 | 560 | 680 | 760 | 840 | 880 | 880 | 860 | | 左右L-R | mm | 860 | 1000 | 1070 | 1170 | 1390 | 1500 | 1540 | 1610 | | 8 | 滑塊底面尺寸Dimensions of slide
block bottom surface | 前后F-B | mm | 400 | 420 | 520 | 580 | 650 | 700 | 700 | 700 | | 左右L-R | mm | 480 | 560 | 620 | 700 | 880 | 950 | 950 | 950 | | 9 | 模柄孔尺寸Size of the handle hole | 直徑Diameter | mm | 50 | 50 | 50 | 65 | 65 | 65 | 65 | 65 | | 深度Depth | mm | 80 | 80 | 75 | 90 | 100 | 100 | 100 | 100 | | 10 | 電動機motor | 型號Type | | Y132M-6 | Y160M-6 | Y160LM-6 | Y180L-6 | Y200L-6 | Y200L-6 | Y225M一6 | Y250M-6 | | 功率Power | kw | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | | 11 | 外形尺寸
Overall dimension | 長Length | mm | 1800 | 1850 | 2010 | 2280 | 2690 | 2840 | 3060 | 3060 | | 寬Width | mm | 1210 | 1280 | 1430 | 1540 | 1630 | 1680 | 1720 | 1920 | | 高Height | mm | 2580 | 2850 | 3040 | 3240 | 3810 | 3915 | 3960 | 3960 | | 12 | 重量Weight | KG | 7000 | 9200 | 11000 | 17000 | 20000 | 23000 | 28500 | 32000 |
|
| |
